6.000M~70.000M2MM*6MM AT-26 Cylinder Quartz Crystal ATLF206
A-CRYSTAL provides high-quality 2mm×6mm MHz quartz crystals in standard metal SMD package with surface-mount design, compliant with RoHS standards. Featuring frequency range 6MHz~70MHz, load capacitance options (8pF/10pF/12pF/15pF/20pF), frequency tolerance ±10ppm~±30ppm, and operating temperature -20℃~+70℃ (extended range -40℃~+85℃ available). With low ESR, high Q factor and excellent shock resistance, these crystals are perfect for wearables, IoT devices, wireless communication modules and consumer electronics. Custom specifications available.
1. ELECTRICAL SPECIFICATIONS
| No. | Item | Symb | Electrical Specification | Remark | |||
| Min. | Type | Max. | Units | ||||
| 1 | Nominal Frequency | F0 | 6.000 | 70.000 | MHz | ||
| 2 | Mode of Vibration |  Fundamental △3rd Overtone △5th Overtone |
|||||
| 3 | Frequency Tolerance | △F/F0 | ±10 | ±30 | ±50 | ppm | at 25℃±3℃ |
| 4 | Operating Temperature Range | TOPR | -10~60 -40~85 |
℃ | |||
| 5 | Frequency Stability | TC | ±30 | ±50 | ppm | ||
| 6 | Storage Temperature | TSTG | -40 | - | 85 | ℃ | |
| 7 | Load capacitance | L | 6~specify | pF | |||
| 8 | Equivalent Series Resistance | ESR | Seepage 1 | Ω | |||
| 9 | Drive Level | DL | - | 100 | 200 | μW | |
| 10 | Insulation Resistance | IR | 500 | - | - | MΩ | At 100VDC |
| 11 | Shunt Capacitance | Co | 5 | pF | |||
| 12 | Aging Per Year | Fa | -5 | - | +5 | ppm | First Yea |
| 13 | Package type | Φ2.0*6.0 | |||||

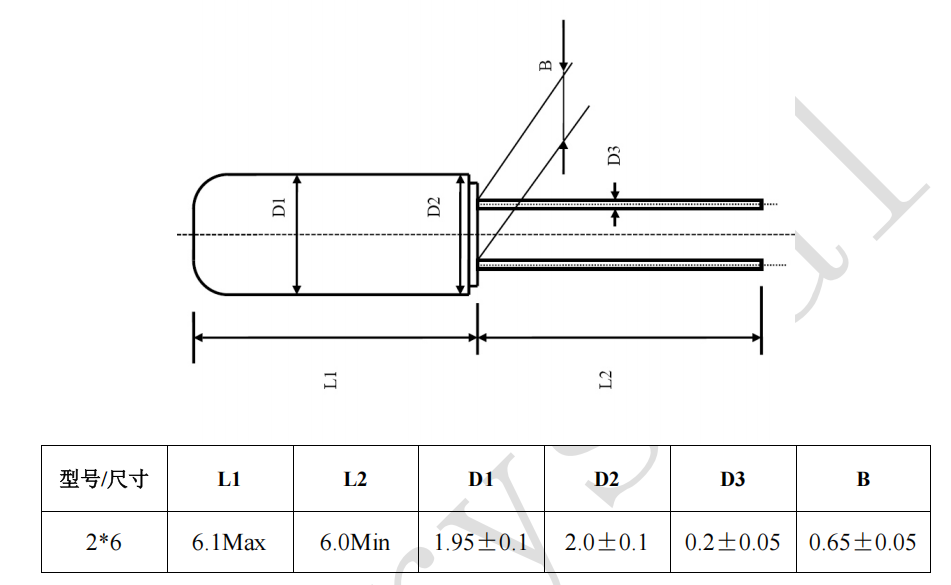

2. Dimension (Unit: mm)
3.For more FAQs and other services, please click on the image below to view.
Features Compact Size: 2mm×6mm ultra-small package, ideal for space-constrained PCBs High Precision: 6MHz~70MHz frequency range, ±10ppm~±30ppm tolerance options High Reliability: Low ESR, high Q value, shock-resistant, -40℃~+85℃ operation Low Power: Optimized for battery-powered portable devices Customizable: Multiple load capacitance (8pF~20pF) and special requirements supported AEC-Q200 Compliant Applications A-Crystal's 2mm×6mm MHz quartz crystals are widely used in wearables (smartwatches, TWS earbuds), IoT (LoRa/NB-IoT modules), wireless communication (Bluetooth/Wi-Fi), consumer electronics, and automotive (infotainment, TPMS), delivering compact size and high stability for precision timing.
